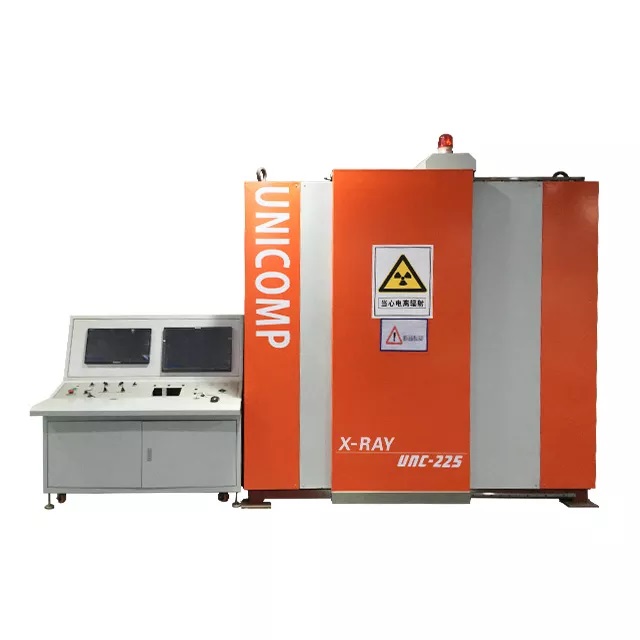

General Utilization NDT Real-time Imaging X-ray - UNC225
General Utilization NDT Real-time Imaging X-ray - UNC225
It is widely applied to inspect all kinds of castings, NDT for air bubble, porosity, and unwanted foreign particles. The equipment is applicable objects for NDT of cylinder welding defects and body, sidewall, lap, Crown steel cord and steel belt of tire slag inclusion, cracks, loose parts and other flaws in hubs, pressure vessels, refractory materials, bullet, boiler welded pipe and screwy pipe.
Features:
 High reliable and long life, low breakdown High definition and resolution FPD C-arm fixture design enabling five-axis motion detection (optional automatic lift and descend) Multi-functional workstation, 360°rotation and shift User friendly software design for easy interfacing can facilitate, customized software. High penetration, Voltage up to 450KV, Maximum penetration thickness up to 80mm for "Fe” Detection area: (diameter)500*800mm Loading weight:100KG
Applications:
It is widely applied to inspect all kind of casting,NDT for air bubble,porosity and unwanted foreign.The equipment is applicable objects for NDT of cylinder welding defects and body,sidewall,lap,Crown steel cord and steel belt of tyre slag inclusion,crack,loosen and other flaws in hubs,pressure vessel,refractory material,bullet,boilr welded pipe and screwy pipe.
|
